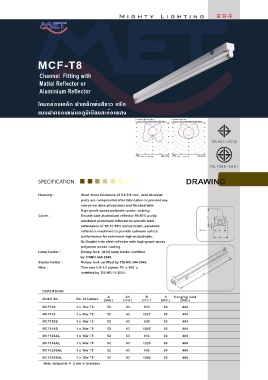

Mighty Lighting                            094    2










                  MCF-T8


                   Channel  Fitting with
                   Mattal Reflector or
                   Aluminium Reflector


                  โคมกล่องเหล็ก ฝาเหล็กพ่นสีขาว หรือ
                  แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                                                             Luminaire: MCF140_AL01  Luminaire: MCF140
                                                             Lamps: 1 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white
                                                             105°          105°  105°      105°
                                                             90°            90°  90°        90°
                                                             75°            75°  75°        75°
                                                                     100             100
                                                             60°            60°  60°        60°
                                                                                               
                                                                     150             150
                                                             45°     200    45°  45°  200   45°
                                                                     250             250
                                                                     300             300
                                                              30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°
                                                             cd/klm      LOR=97%  cd/klm  LOR=94%
                                                               C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                              
                  SPECIFICATION                                                     DRAWING


                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any
                                     corrosion (zine phosphate) and finished with
                                     high-grade epoxy polyester power coating.
                  Cover :            Double side aluminiuml reflector 99.90% purity
                                                                                             
                                     anodized aluminium reflector to provide total
                                     reflectance of TR 87-95% mirror-finish, parabolic
                                     reflectors machined to provide optimum optical           
                                     performance for maximum high-output-ratio.                   
                                                              Or Double side steel reflector with high-grade epoxy
                                     polyester power coating.
                  Lamp holder :      Rotary lock  (G13) lamp holder certified
                                                              by TISNO.344-2549.
                  Starter holder :   Rotary lock certified by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.                          



                    DIMENSION
                                                 A       A1       B       C   Hanging hold
                    Model No.      No. of Lamps  (mm.)  (mm.)   (mm.)    (mm.)   (mm.)
                    MCF120         1 x 18w T8    52      63      613      80      484
                    MCF140         1 x 36w T8    52      63      1223     80      484
                    MCF120S        1 x 18w T8    52      63      635      90      484
                    MCF140S        1 x 36w T8    52      63      1245     90      484
                    MCF120AL       1 x 18w T8    52      63      613      80      484
                    MCF140AL       1 x 36w T8    52      63      1223     80      484
                    MCF120SAL      1 x 18w T8    52      63      635      90      484
                    MCF140SAL      1 x 36w T8    52      63      1245     90      484
                    Note: subject to +/- 2 mm in tolerance
