P. 98

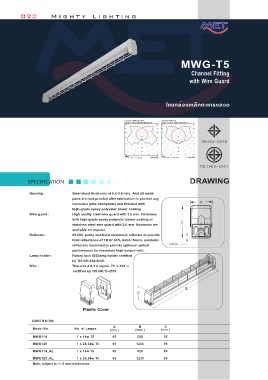

093          Mighty Lighting










                                                                                 MWG-T5

                                                                                      Channel Fitting
                                                                                     with Wire Guard





                                                                           โคมกล่องเหล็กตะแกรงลวด



                                                        Luminaire: MWG128_AL01  Luminaire: MWG128
                                                        Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5
                                                         105°          105°  105°      105°
                                                         90°           90°  90°        90°
                                                         75°           75°  75°        75°
                                                                80              80
                                                         60°           60°  60°        60°
                                                                                          
                                                                120             120
                                                         45°    160    45°  45°        45°
                                                                200             200
                                                                240             240
                                                         30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°
                                                         cd/klm     LOR=90%  cd/klm  LOR=86%
                                                          C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING

              Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                 parts are rust-proofed after fabrication to prevent any   
                                 corrosion (zine phosphate) and finished with
                                 high-grade epoxy polyester power coating.
              Wire guard :       High quality steel wire guard with 3.0 mm. thickness
                                 with high-grade epoxy polyester power coating or   
                                 stainless steel wire guard with 2.0 mm. thickness are
                                 available on request.
              Reflector :        99.90% purity anodized aluminium reflector to provide
                                 total reflectance of TR 87-95% mirror-finish, parabolic
                                 reflectors machined to provide optimum optical   
                                 performance for maximum high-output-ratio.
              Lamp holder :      Rotary lock (G5)lamp holder certified
                                 by TIS NO.344-2549.
              Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                                           certified by TIS NO.11-2531.



                                                                                   B
                                                              C



                                      Plastic Cover

               DIMENSION
                Model No.         No. of Lamps     A           B          C
                                                  (mm.)      (mm.)       (mm.)
                MWG114             1 x 14w T5      65         625         95
                MWG128             1 x 28,54w T5   65         1235        95
                MWG114_AL          1 x 14w T5      65         625         95
                MWG128_AL          1 x 28,54w T5   65         1235        95
                Note: subject to +/- 2 mm in tolerance
