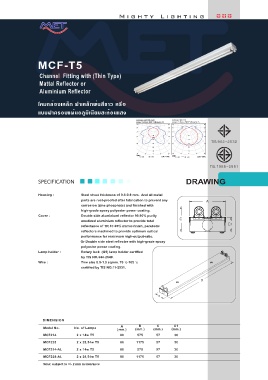

Mighty Lighting                            088    2










                  MCF-T5


                   Channel  Fitting with (Thin Type)
                   Mattal Reflector or
                   Aluminium Reflector


                  โคมกล่องเหล็ก ฝาเหล็กพ่นสีขาว หรือ
                  แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                                                              Luminaire: MCF228_AL01  Luminaire: MCF228
                                                              Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 2 x Fluor. 28W 4' Silhouette T5
                                                              105°          105°  105°      105°
                                                              90°           90°  90°        90°
                                                              75°           75°  75°        75°
                                                                     100             80
                                                              60°           60°  60°        60°
                                                                                               
                                                                     150             120
                                                              45°    200    45°  45°  160   45°
                                                                     250             200
                                                                     300             240
                                                              30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                                                              cd/klm     LOR=94%  cd/klm
                                                               C0 - C180  C90 - C270  C0 - C180  C90 - C270  LOR=89%
                                                                                              
                  SPECIFICATION                                                     DRAWING


                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any   
                                     corrosion (zine phosphate) and finished with
                                     high-grade epoxy polyester power coating.
                  Cover :            Double side aluminiuml reflector 99.90% purity   
                                     anodized aluminium reflector to provide total                    
                                     reflectance of TR 87-95% mirror-finish, parabolic
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.
                                                              Or Double side steel reflector with high-grade epoxy
                                     polyester power coating.
                  Lamp holder :      Rotary lock  (G5) lamp holder certified
                                     by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.

                                                                                          


                                                                       





                    DIMENSION
                                                       A       B       C      C1
                    Model No.     No. of Lamps       (mm.)   (mm.)   (mm.)   (mm.)
                    MCF214         2 x 14w T5         80      575     57      30
                    MCF228         2 x 28,54w T5      80      1175    57      30
                    MCF214-AL      2 x 14w T5         80      575     57      30
                    MCF228-AL      2 x 28,54w T5      80      1175    57      30
                    Note: subject to +/- 2 mm in tolerance
