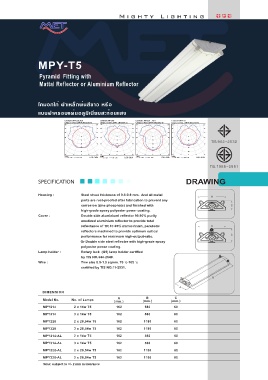

Mighty Lighting                            090    2










                  MPY-T5


                   Pyramid  Fitting with
                   Mattal Reflector or Aluminium Reflector




                  โคมอกไก่ ฝาเหล็กพ่นสีขาว หรือ
                  แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                              Luminaire: MPY328_AL01  Luminaire: MPY328  Luminaire: MPY228 -AL01  Luminaire: MPY228
                              Lamps: 3 x Fluor. 28W 4' Silhouette T5  Lamps: 3 x Fluor. 28W 4' Silhouette T5  Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 2 x Fluor. 28W 4' Silhouette T5
                              105°          105°  105°      105°  105°      105°  105°     105°
                              90°           90°  90°        90°  90°        90°  90°        90°
                              75°           75°  75°        75°  75°        75°  75°        75°
                                     80              80              80              80
                              60°           60°  60°        60°  60°        60°  60°        60°
                                                                                               
                                     120             120             120            120
                              45°    160    45°  45°  160   45°  45°  160   45°  45°  160   45°
                                     200             200             200            200
                                     240             240                            240
                              30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°
                              cd/klm          cd/klm         cd/klm          cd/klm
                               C0 - C180  C90 - C270  LOR=96%  C0 - C180  C90 - C270  LOR=91%  C0 - C180  C90 - C270  LOR=96%  C0 - C180  C90 - C270  LOR=91%
                                                                                              
                  SPECIFICATION                                                     DRAWING


                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                                                                               A
                                     parts are rust-proofed after fabrication to prevent any
                                     corrosion (zine phosphate) and finished with                       C
                                     high-grade epoxy polyester power coating.
                  Cover :            Double side aluminiuml reflector 99.90% purity
                                     anodized aluminium reflector to provide total
                                     reflectance of TR 87-95% mirror-finish, parabolic         A
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.                         C
                                                              Or Double side steel reflector with high-grade epoxy
                                     polyester power coating.
                  Lamp holder :      Rotary lock  (G5) lamp holder certified
                                     by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.
                                                                                               B

                                                                                 A
                    DIMENSION
                    Model No.    No. of Lamps        A            B            C
                                                    (mm.)       (mm.)        (mm.)
                    MPY214        2 x 14w T5         162         580          60
                    MPY314        3 x 14w T5         162         580          80
                    MPY228        2 x 28,54w T5      162         1180         60
                    MPY328        3 x 28,54w T5      162         1180         80
                    MPY214-AL     2 x 14w T5         162         580          60
                    MPY314-AL     3 x 14w T5         162         580          80
                    MPY228-AL     2 x 28,54w T5      162         1180         60
                    MPY328-AL     2 x 28,54w T5      162         1180         80
                    Note: subject to +/- 2 mm in tolerance
