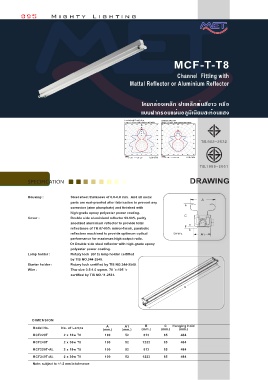

P. 100

095          Mighty Lighting










                                                                              MCF-T-T8


                                                                                Channel  Fitting with
                                                           Mattal Reflector or Aluminium Reflector




                                                                โคมกล่องเหล็ก ฝาเหล็กพ่นสีขาว หรือ
                                                                แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                                                        Luminaire: MCF240T_AL01  Luminaire: MCF240T
                                                        Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 2 x Fluor. 36W 1200mm #83 white
                                                         135°  150°  165°  180°  165°  150°  135°  135°  150°  165°  180°  165°  150°  135°
                                                                140
                                                                                160
                                                                120
                                                                100
                                                         120°          120°  120°  120  120°
                                                                80
                                                                60              80
                                                         105°   40     105°  105°      105°
                                                                                          
                                                         90°           90°  90°        90°
                                                         75°           75°  75°        75°
                                                         60°           60°  60°        60°
                                                         45°  30°  15°  0 0°°  15°  30°  45°  45°  30°  15°  0 0°°  15°  30°  45°
                                                         cd/klm    LOR=97%  cd/klm  LOR=96%
                                                          C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING
             Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal       
                                parts are rust-proofed after fabrication to prevent any
                                corrosion (zine phosphate) and finished with
                                high-grade epoxy polyester power coating.          
             Cover :            Double side aluminiuml reflector 99.90% purity
                                anodized aluminium reflector to provide total
                                reflectance of TR 87-95% mirror-finish, parabolic
                                reflectors machined to provide optimum optical        
                                performance for maximum high-output-ratio.
                                                         Or Double side steel reflector with high-grade epoxy
                                polyester power coating.
             Lamp holder :      Rotary lock  (G13) lamp holder certified
                                by TIS NO.344-2549.
             Starter holder :   Rotary lock certified by TIS NO.344-2549.
             Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                certified by TIS NO.11-2531.

                                                                                   







               DIMENSION
                                                A       A1       B        C   Hanging hold
                Model No.   No. of Lamps       (mm.)   (mm.)    (mm.)    (mm.)   (mm.)
                MCF220T      2 x 18w T8         100      52      613      85     484
                MCF240T      2 x 36w T8         100      52     1223      85     484
                MCF220T-AL   2 x 18w T8         100      52      613      85     484
                MCF240T-AL   2 x 36w T8         100      52     1223      85     484
                Note: subject to +/- 2 mm in tolerance
