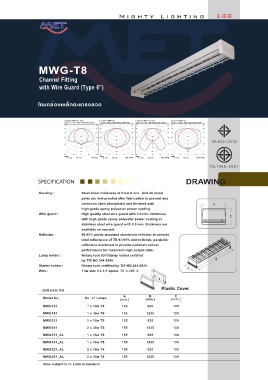

Mighty Lighting                            100    2












                  MWG-T8

                  Channel Fitting
                  with Wire Guard (Type 6”)



                  โคมกล่องเหล็กตะแกรงลวด



                             Luminaire: MWG241_AL01  Luminaire: MWG241  Luminaire: MWG141_AL01  Luminaire: MWG141
                             Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white
                              105°          105°  105°     105°  105°      105°  105°      105°
                              90°           90°  90°        90°  90°        90°  90°       90°
                              75°           75°  75°        75°  75°        75°  75°       75°
                                     100             80             100             80
                              60°           60°  60°        60°  60°        60°  60°       60°
                                                                                               
                                     150             120            150             120
                              45°           45°  45°  160   45°  45°  200   45°  45°  160  45°
                                     250                            250             200
                                     300             240            300             240
                              30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                              cd/klm         cd/klm      LOR=78%  cd/klm  LOR=89%  cd/klm  LOR=83%
                               C0 - C180  C90 - C270  LOR=83%  C0 - C180  C90 - C270  C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                              
                  SPECIFICATION                                                     DRAWING


                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any
                                     corrosion (zine phosphate) and finished with               A
                                     high-grade epoxy polyester power coating.
                  Wire guard :       High quality steel wire guard with 3.0 mm. thickness
                                                                                                       C
                                     with high-grade epoxy polyester power coating or
                                     stainless steel wire guard with 2.0 mm. thickness are
                                     available on request.
                  Reflector :        99.90% purity anodized aluminium reflector to provide
                                     total reflectance of TR 87-95% mirror-finish, parabolic
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.
                  Lamp holder :      Rotary lock (G13)lamp holder certified
                                     by TIS NO.344-2549.                                         B
                  Starter holder :   Rotary lock certified by TIS NO.344-2549.      A
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc



                                                                         Plastic Cover
                    DIMENSION
                    Model No.          No. of Lamps     A          B           C
                                                      (mm.)       (mm.)      (mm.)
                    MWG121              1 x 18w T8     155         625        100
                    MWG141              1 x 36w T8     155        1235        100
                    MWG221              2 x 18w T8     155         625        100
                    MWG241              2 x 36w T8     155        1235        100
                    MWG121_AL           1 x 18w T8     155         625        100
                    MWG141_AL           1 x 36w T8     155        1235        100
                    MWG221_AL           2 x 18w T8     155         625        100
                    MWG241_AL           2 x 36w T8     155        1235        100
                    Note: subject to +/- 2 mm in tolerance
