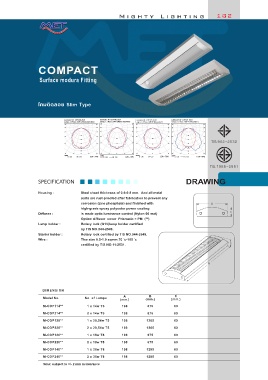

P. 107

Mighty Lighting                             102   2












                  COMPACT

                   Surface modura Fitting





                  โคมติดลอย Slim Type



                              Luminaire: M -COP240_AL01  Luminaire: M -COP140_AL01  Luminaire: M -COP228_AL01  Luminaire: M -COP128_AL01
                              Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white  Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5
                              105°          105°  105°      105°  105°     105°  105°      105°
                              90°           90°  90°        90°  90°        90°  90°       90°
                              75°           75°  75°        75°  75°        75°  75°       75°
                                     100                                            100
                              60°           60°  60°        60°  60°        60°  60°       60°
                                                     160
                                     150                             160            150        
                              45°    200    45°  45°  240   45°  45°  240   45°  45°  200  45°
                                     250                                            250
                                                                     320
                                     300                                            300
                              30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°
                              cd/klm     LOR=70%  cd/klm     cd/klm     LOR=76%  cd/klm  LOR=78%
                               C0 - C180  C90 - C270  C0 - C180  C90 - C270  LOR=78%  C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                              
                  SPECIFICATION                                                     DRAWING

                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any
                                     corrosion (zine phosphate) and finished with              
                                     high-grade epoxy polyester power coating
                                                                                                       
                  Diffuser :         Is made optic luminance control (Nylon 66 mat)
                                     Option diffuser  cover  Prismatic = PM  (**)
                  Lamp holder :      Rotary lock (G13)lamp holder certified
                                     by TIS NO.344-2549.
                  Starter holder :   Rotary lock certified by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm.70 ํc-105 ํc
                                     certified by TIS NO.11-2531.                                      



                                                                                              






                    DIMENSION
                    Model No.          No. of Lamps     A          B           C
                                                      (mm.)       (mm.)      (mm.)
                    M-COP114**          1 x 14w T5     198         675        60
                    M-COP214**          2 x 14w T5     198         675        60
                    M-COP128**          1 x 28,54w T5  198        1285        60
                    M-COP228**          2 x 28,54w T5  198        1285        60
                    M-COP120**          1 x 18w T8     198         675        60
                    M-COP220**          2 x 18w T8     198         675        60
                    M-COP140**          1 x 36w T8     198        1285        60
                    M-COP240**          2 x 36w T8     198        1285        60
                    Note: subject to +/- 2 mm in tolerance
