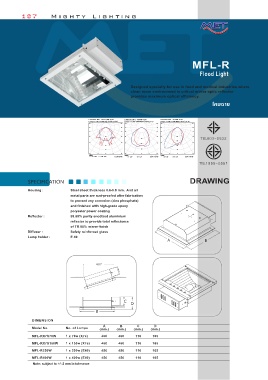

Page 112 - MIGHTY - CATALOGUE 2014-2015
P. 112

107          Mighty Lighting










                                                                                      MFL-R

                                                                                          Flood Light


                                                           Designed specially for use in food and medical industries where
                                                           clean room environment is critical mirror optic reflector
                                                           provides maximum optical efficiency.
                                                                                               โคมฉาย



                                        Luminaire: MFL -RX7s150W_AL01  Luminaire: MFL -R400W_AL01  Luminaire: MFL -R250W_AL01
                                        Lamps: 1 x MH 150W HQI double ended  Lamps: 1 x MH 400W MVR coated ED-37  Lamps: 1 x MH 250W MVR coated ED-28
                                         105°          105°  105°     105°  105°      105°
                                         90°           90°  90°        90°  90°        90°
                                         75°           75°  75°        75°  75°        75°
                                                                                          
                                         60°    200    60°  60°        60°  60°  200   60°
                                                                200
                                                                               300
                                         45°           45°  45°        45°  45°        45°
                                                                300
                                                400                            400
                                                                400
                                                500                            500
                                         30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                                         cd/klm         cd/klm          cd/klm
                                          C0 - C180  C90 - C270  LOR-89%  C0 - C180  C90 - C270  LOR=85%  C0 - C180  C90 - C270  LOR=86%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING
             Housing :          Steel sheet thickness 0.6-0.8 mm.  And all
                                metal parts are rust-proofed after fabrication
                                to prevent any corrosion (zine phosphate)
                                and finished  with high-grade epoxy
                                polyester power coating
             Reflector :        99.99% purity anodized aluminium
                                reflector to provide total reflectance
                                of TR 95% mirror-finish
             Diffuser :         Safety reinforced glass
             Lamp holder :      E 40
                                                                           A                B




                                            









                                                        C
                                                           D
                                            B
               DIMENSION
                                               A      B       C       D
               Model No.      No. of Lamps   (mm.)   (mm.)  (mm.)   (mm.)
               MFL-RX7S70W    1 x 70w (X7s)   450     450    116     165
               MFL-RX7S150W   1 x 150w (X7s)  450     450    116     165
               MFL-R250W      1 x 250w (E40)  450     450    116     165
               MFL-R400W      1 x 400w (E40)  450     450    116     165
                Note: subject to +/- 2 mm in tolerance
