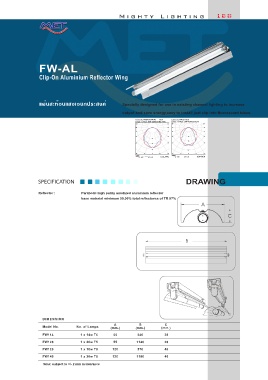

Mighty Lighting                            108    2











                  FW-AL

                  Clip-On Aluminium Reflector Wing






                  แผ่นสะท้อนแสงเอนกประสงค์             Specially designed for use in existing channel lighting to increase
                                                       output and save energy,easy to install just clip into fluorescent tubes.

                                                             Luminaire: PROJECT: FW140  -AL01  Luminaire: FW128_AL01
                                                             Lamps: 1 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 28W 4' Silhouette T5
                                                             105°          105°  105°      105°
                                                             90°           90°  90°         90°
                                                             75°           75°  75°         75°
                                                             60°           60°  60°  200    60°
                                                                    200
                                                                                    300
                                                             45°    300    45°  45°         45°
                                                                    400
                                                                                    500
                                                             30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°
                                                             cd/klm          cd/klm     LOR=91%
                                                               C0 - C180  C90 - C270  LOR_94%  C0 - C180  C90 - C270

                  SPECIFICATION                                                     DRAWING


                  Reflector :        Parabolic high purity anodized aluminium reflector
                                     base material minimum 99.90% total reflectance of TR 87%
                                                                                          

                                                                                                      





                                                                                    




















                    DIMENSION
                                                    A          B          C
                    Model No.      No. of Lamps   (mm.)      (mm.)       (mm.)
                    FW114            1 x 14w T5    55         540         26
                    FW128            1 x 28w T5    55         1140        26
                    FW120            1 x 18w T8    120        570         40
                    FW140            1 x 36w T8    120        1180        40
                    Note: subject to +/- 2 mm in tolerance
