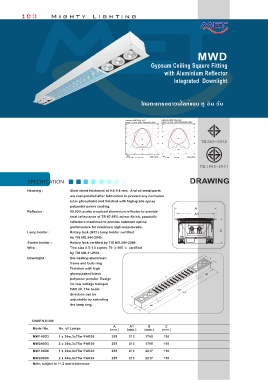

P. 108

103          Mighty Lighting








                                                                                         MWD

                                                                    Gypsum Ceiling Sqaure Fitting
                                                                          with Aluminium Reflector
                                                                              Integrated  Downlight





                                                                โคมตะแกรงดาวน์ไลท์แบบ ทู อิน วัน



                                                         Luminaire: MW240D6_AL01  Luminaire: MW140D6_AL01
                                                         Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white
                                                         105°          105°  105°      105°
                                                         90°           90°  90°        90°
                                                         75°           75°  75°        75°
                                                         60°           60°  60°        60°
                                                                                          
                                                                200             200
                                                         45°    300    45°  45°        45°
                                                                400             400
                                                         30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°
                                                         cd/klm          cd/klm
                                                          C0 - C180  C90 - C270  LOR=82%  C0 - C180  C90 - C270  LOR=87%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING

             Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal parts
                                are rust-proofed after fabrication to prevent any corrosion
                                (zine phosphate) and finished with high-grade epoxy
                                polyester power coating.                                A
             Reflector :        99.90% purity anodized aluminium reflector to provide   A1
                                total reflectance of TR 87-95% mirror-finish, parabolic
                                reflectors machined to provide optimum optical
                                performance for maximum high-output- ratio.
             Lamp holder :      Rotary lock (G13 ) lamp holder certified                           C
                                by TIS NO.344-2549.
             Starter holder :   Rotary lock certified by TIS NO.344-2549.
             Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc  certified
                                by TIS NO.11-2531.
             Downlight :        Die-casting aluminium                                         A
                                frame and bulb ring.
                                Finished with high
                                glossy,baked black                                          480
                                                                          B
                                polyester powder. Design
                                for low voltage halogen
                                PAR 30. The beam                                1,224
                                direction can be                                  2,187
                                adjustable by swiveling
                                the lamp ring.                      480
                                                             A1

               DIMENSION
                                                   A       A1      B      C
                Model No.  No. of Lamps           (mm.)  (mm.)   (mm.)   (mm.)
                MW140D3    1 x 36w,3x75w PAR30     255    210     1705    150
                MW240D3    2 x 36w,3x75w PAR30     255    210     1705    150
                MW140D6    1 x 36w,6x75w PAR30     255    210     2217    150
                MW240D6    2 x 36w,6x75w PAR30     255    210     2217    150
                Note: subject to +/- 2 mm in tolerance
