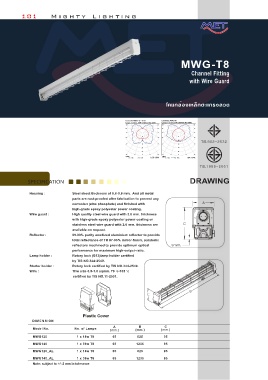

Page 106 - MIGHTY - CATALOGUE 2014-2015

101 Mighty Lighting

MWG-T8

Channel Fitting
with Wire Guard

โคมกล่องเหล็กตะแกรงลวด

Luminaire: MWG140 -AL01 Luminaire: MWG140
Lamps: 1 x Fluor. 36W 1200mm #83 white Lamps: 1 x Fluor. 36W 1200mm #83 white
105° 105° 105° 105°
90° 90° 90° 90°
75° 75° 75° 75°
80 80
60° 60° 60° 60°

120 120
45° 160 45° 45° 160 45°
200 200
240 240
30° 15° 0°° 0 15° 30° 30° 15° 0 0°° 15° 30°
cd/klm LOR=89% cd/klm
C0 - C180 C90 - C270 C0 - C180 C90 - C270 LOR=87%


SPECIFICATION DRAWING

Housing : Steel sheet thickness of 0.6-0.8 mm. And all metal
parts are rust-proofed after fabrication to prevent any
corrosion (zine phosphate) and finished with 
high-grade epoxy polyester power coating.
Wire guard : High quality steel wire guard with 3.0 mm. thickness
with high-grade epoxy polyester power coating or
stainless steel wire guard with 2.0 mm. thickness are 
available on request.
Reflector : 99.90% purity anodized aluminium reflector to provide
total reflectance of TR 87-95% mirror-finish, parabolic
reflectors machined to provide optimum optical 
performance for maximum high-output-ratio.
Lamp holder : Rotary lock (G13)lamp holder certified
by TIS NO.344-2549.
Starter holder : Rotary lock certified by TIS NO.344-2549.
Wire : Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
certified by TIS NO.11-2531.




Plastic Cover
DIMENSION
Model No. No. of Lamps A B C
(mm.) (mm.) (mm.)
MWG120 1 x 18w T8 65 625 95
MWG140 1 x 36w T8 65 1235 95
MWG120_AL 1 x 18w T8 65 625 95
MWG140_AL 1 x 36w T8 65 1235 95
Note: subject to +/- 2 mm in tolerance
