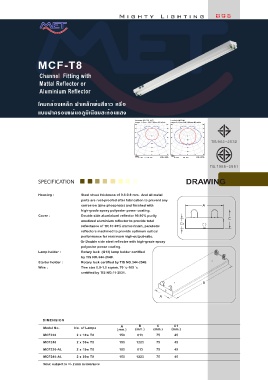

P. 101

Mighty Lighting                            096    2










                  MCF-T8


                   Channel  Fitting with
                   Mattal Reflector or
                   Aluminium Reflector


                  โคมกล่องเหล็ก ฝาเหล็กพ่นสีขาว หรือ
                  แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                                                             Luminaire: MCF240_AL01  Luminaire: MCF240
                                                             Lamps: 3 x Fluor. 36W 1200mm #83 white  Lamps: 3 x Fluor. 36W 1200mm #83 white
                                                             105°          105°  105°      105°
                                                             90°           90°  90°        90°
                                                             75°           75°  75°        75°
                                                                    80              80
                                                             60°           60°  60°        60°
                                                                                               
                                                                                    120
                                                             45°    160    45°  45°        45°
                                                                    200             200
                                                                    240             240
                                                             30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°
                                                             cd/klm          cd/klm     LOR=89%
                                                              C0 - C180  C90 - C270  LOR=93%  C0 - C180  C90 - C270
                                                                                              
                  SPECIFICATION                                                     DRAWING


                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any
                                     corrosion (zine phosphate) and finished with          
                                     high-grade epoxy polyester power coating.
                  Cover :            Double side aluminiuml reflector 99.90% purity                   
                                     anodized aluminium reflector to provide total  
                                     reflectance of TR 87-95% mirror-finish, parabolic
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.
                                                              Or Double side steel reflector with high-grade epoxy
                                     polyester power coating.
                  Lamp holder :      Rotary lock  (G13) lamp holder certified
                                     by TIS NO.344-2549.
                  Starter holder :   Rotary lock certified by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.

                                                                                           

                                                                        





                    DIMENSION
                                                       A       B       C      C1
                    Model No.     No. of Lamps       (mm.)   (mm.)   (mm.)   (mm.)
                    MCF220         2 x 18w T8         150     613     75      45
                    MCF240         2 x 36w T8         150     1223    75      45
                    MCF220-AL      2 x 18w T8         150     613     75      45
                    MCF240-AL      2 x 36w T8         150     1223    75      45
                    Note: subject to +/- 2 mm in tolerance
