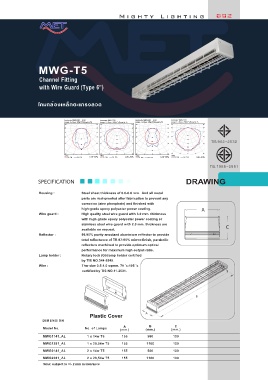

P. 97

Mighty Lighting                            092    2












                  MWG-T5

                  Channel Fitting
                  with Wire Guard (Type 6”)



                  โคมกล่องเหล็กตะแกรงลวด



                              Luminaire: MWG2281 -AL01  Luminaire: MWG2281  Luminaire: MWG1281 -AL01  Luminaire: MWG1281
                              Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5
                              105°          105°  105°      105°  105°     105°  105°      105°
                              90°           90°  90°        90°  90°        90°  90°       90°
                              75°           75°  75°        75°  75°        75°  75°       75°
                                                     80                             80
                              60°           60°  60°        60°  60°  200   60°  60°       60°
                                     200                                            120
                                                     120                                       
                                                                    300
                              45°    300    45°  45°  160   45°  45°        45°  45°  160  45°
                                                                    400
                                                     200                            200
                                     400                            500
                                                     240                            240
                              30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°
                              cd/klm         cd/klm          cd/klm          cd/klm
                               C0 - C180  C90 - C270  LOR=87%  C0 - C180  C90 - C270  LOR=80%  C0 - C180  C90 - C270  LOR=89%  C0 - C180  C90 - C270  LOR=83%
                                                                                              
                  SPECIFICATION                                                     DRAWING
                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any
                                     corrosion (zine phosphate) and finished with
                                     high-grade epoxy polyester power coating.             A
                  Wire guard :       High quality steel wire guard with 3.0 mm. thickness
                                     with high-grade epoxy polyester power coating or
                                     stainless steel wire guard with 2.0 mm. thickness are           C
                                     available on request.
                  Reflector :        99.90% purity anodized aluminium reflector to provide
                                     total reflectance of TR 87-95% mirror-finish, parabolic
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.
                  Lamp holder :      Rotary lock (G5)lamp holder certified
                                     by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                                               certified by TIS NO.11-2531.





                                                                                        



                                         Plastic Cover            
                    DIMENSION
                    Model No.          No. of Lamps     A          B           C
                                                      (mm.)       (mm.)      (mm.)
                    MWG1141_AL          1 x 14w T5     155         580        100
                    MWG1281_AL          1 x 28,54w T5  155        1180        100
                    MWG2141_AL          2 x 14w T5     155         580        100
                    MWG2281_AL          2 x 28,54w T5  155        1180        100
                    Note: subject to +/- 2 mm in tolerance
