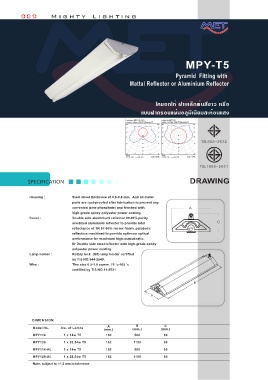

Page 94 - MIGHTY - CATALOGUE 2014-2015
P. 94

089          Mighty Lighting










                                                                                   MPY-T5


                                                                               Pyramid  Fitting with
                                                           Mattal Reflector or Aluminium Reflector




                                                                      โคมอกไก่ ฝาเหล็กพ่นสีขาว หรือ
                                                                แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                                                         Luminaire: MPY128_AL01  Luminaire: MPY128
                                                         Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5
                                                         105°          105°  105°      105°
                                                         90°           90°  90°        90°
                                                         75°           75°  75°        75°
                                                                100             80
                                                         60°           60°  60°        60°
                                                                                          
                                                                150             120
                                                         45°    200    45°  45°  160   45°
                                                                250             200
                                                                300             240
                                                         30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°
                                                         cd/klm          cd/klm
                                                          C0 - C180  C90 - C270  LOR=96%  C0 - C180  C90 - C270  LOR=92%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING


              Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                 parts are rust-proofed after fabrication to prevent any
                                 corrosion (zine phosphate) and finished with        A
                                 high-grade epoxy polyester power coating.
              Cover :            Double side aluminiuml reflector 99.90% purity
                                 anodized aluminium reflector to provide total                    C
                                 reflectance of TR 87-95% mirror-finish, parabolic
                                 reflectors machined to provide optimum optical
                                 performance for maximum high-output-ratio.
                                                          Or Double side steel reflector with high-grade epoxy
                                 polyester power coating.
              Lamp holder :      Rotary lock  (G5) lamp holder certified
                                 by TIS NO.344-2549.
              Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                 certified by TIS NO.11-2531.


                                                                                       B

                                                                    A





               DIMENSION
                                                 A           B            C
                Model No.   No. of Lamps       (mm.)        (mm.)        (mm.)
                MPY114       1 x 14w T5         162          580          80
                MPY128       1 x 28,54w T5      162         1180          80
                MPY114-AL    1 x 14w T5         162          580          80
                MPY128-AL    1 x 28,54w T5      162         1180          80
                Note: subject to +/- 2 mm in tolerance
