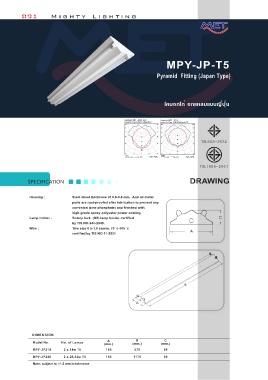

P. 96

091          Mighty Lighting










                                                                           MPY-JP-T5


                                                                       Pyramid  Fitting (Japan Type)






                                                                          โคมอกไก่ อกแหลมแบบญี่ปุ่น



                                                        Luminaire: MPY -JP228_AL01  Luminaire: MPY -JP228
                                                        Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 2 x Fluor. 28W 4' Silhouette T5
                                                         105°          105°  105°     105°
                                                         90°           90°  90°        90°
                                                         75°           75°  75°        75°
                                                                                80
                                                         60°    100    60°  60°        60°
                                                                                120
                                                                150                       
                                                         45°           45°  45°  160   45°
                                                                200
                                                                250
                                                                                240
                                                         30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                                                         cd/klm          cd/klm
                                                          C0 - C180  C90 - C270  LOR=96%  C0 - C180  C90 - C270  LOR=92%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING

              Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                 parts are rust-proofed after fabrication to prevent any
                                 corrosion (zine phosphate) and finished with
                                 high-grade epoxy polyester power coating.
              Lamp holder :      Rotary lock  (G5) lamp holder certified                          C
                                 by TIS NO.344-2549.
              Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc                  A
                                 certified by TIS NO.11-2531.












                                                                                   B



                                                             A







               DIMENSION
                                                 A           B            C
                Model No.   No. of Lamps       (mm.)        (mm.)        (mm.)
                MPY-JP214    2 x 14w T5         165          570          60
                MPY-JP228    2 x 28,54w T5      165         1170          60
                Note: subject to +/- 2 mm in tolerance
