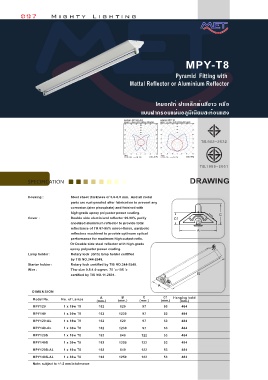

Page 102 - MIGHTY - CATALOGUE 2014-2015
P. 102

097           Mighty Lighting










                                                                                   MPY-T8


                                                                               Pyramid  Fitting with
                                                           Mattal Reflector or Aluminium Reflector




                                                                      โคมอกไก่ ฝาเหล็กพ่นสีขาว หรือ
                                                                แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                                                        Luminaire: MPY140S_AL01  Luminaire: MPY140S
                                                        Lamps: 1 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white
                                                        135°  150°  165°  180°  165°  150°  135°  135°  150°  165°  180°  165°  150°  135°
                                                               240
                                                                               160
                                                               200
                                                        120°   160    120°  120°  120  120°
                                                               120              80
                                                        105°   80     105°  105°      105°
                                                                                          
                                                        90°           90°  90°         90°
                                                        75°           75°  75°         75°
                                                        60°           60°  60°         60°
                                                        45°  30°  15°  0°° 0  15°  30°  45°  45°  30°  15°  0°° 0  15°  30°  45°
                                                        cd/klm          cd/klm
                                                         C0 - C180  C90 - C270  LOR=97%  C0 - C180  C90 - C270  LOR=95%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING

             Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                parts are rust-proofed after fabrication to prevent any
                                corrosion (zine phosphate) and finished with
                                high-grade epoxy polyester power coating.                         C
             Cover :            Double side aluminiuml reflector 99.90% purity   C1
                                anodized aluminium reflector to provide total
                                reflectance of TR 87-95% mirror-finish, parabolic        A
                                reflectors machined to provide optimum optical
                                performance for maximum high-output-ratio.
                                                         Or Double side steel reflector with high-grade
                                                         epoxy polyester power coating.
             Lamp holder :      Rotary lock  (G13) lamp holder certified
                                by TIS NO.344-2549.
             Starter holder :   Rotary lock certified by TIS NO.344-2549.
             Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                certified by TIS NO.11-2531.                             B
                                                                       A
               DIMENSION
                Model No.   No. of Lamps      A        B         C        C1  Hanging hold
                                            (mm.)    (mm.)     (mm.)     (mm.)   (mm.)
                MPY120       1 x 18w T8      162      620       97        53      484
                MPY140       1 x 36w T8      162      1230      97        53      484
                MPY120-AL    1 x 18w T8      162      620       97        53      484
                MPY140-AL    1 x 36w T8      162      1230      97        53      484
                MPY120S      1 x 18w T8      162      640       122       53      484
                MPY140S      1 x 36w T8      162      1250      122       53      484
                MPY120S-AL   1 x 18w T8      162      640       122       53      484
                MPY140S-AL   1 x 36w T8      162      1250      122       53      484
                Note: subject to +/- 2 mm in tolerance
