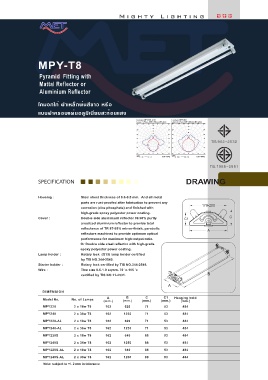

P. 103

Mighty Lighting                            098    2










                  MPY-T8


                   Pyramid  Fitting with
                   Mattal Reflector or
                   Aluminium Reflector


                  โคมอกไก่ ฝาเหล็กพ่นสีขาว หรือ
                  แบบฝาครอบแผ่นอลูมิเนียมสะท้อนแสง

                                                              Luminaire: MPY240S_AL01  Luminaire: MPY240S
                                                              Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 2 x Fluor. 36W 1200mm #83 white
                                                              135°  150°  165°  180°  165°  150°  135°  135°  150°  165°  180°  165°  150°  135°
                                                                     200
                                                                                    160
                                                                     160
                                                                                    120
                                                              120°          120°  120°     120°
                                                                     120
                                                                                     80
                                                                     80
                                                              105°          105°  105°     105°
                                                                                               
                                                              90°           90°  90°        90°
                                                              75°           75°  75°        75°
                                                              60°           60°  60°        60°
                                                              45°  30°  15°  0 0°°  15°  30°  45°  45°  30°  15°  0 0°°  15°  30°  45°
                                                              cd/klm     LOR=97%  cd/klm  LOR=94%
                                                               C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                              
                  SPECIFICATION                                                     DRAWING
                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any   170-200
                                     corrosion (zine phosphate) and finished with
                                     high-grade epoxy polyester power coating.
                  Cover :            Double side aluminiuml reflector 99.90% purity   C1               C
                                     anodized aluminium reflector to provide total
                                     reflectance of TR 87-95% mirror-finish, parabolic       A
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.
                                                              Or Double side steel reflector with high-grade
                                                              epoxy polyester power coating.
                  Lamp holder :      Rotary lock  (G13) lamp holder certified
                                     by TIS NO.344-2549.
                  Starter holder :   Rotary lock certified by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.                            B
                                                                            A
                    DIMENSION
                                                 A       B        C       C1  Hanging hold
                    Model No.    No. of Lamps  (mm.)    (mm.)   (mm.)    (mm.)   (mm.)
                    MPY220        2 x 18w T8    162     620      71       53      484
                    MPY240        2 x 36w T8    162     1230     71       53      484
                    MPY220-AL     2 x 18w T8    162     620      71       53      484
                    MPY240-AL     2 x 36w T8    162     1230     71       53      484
                    MPY220S       2 x 18w T8    162     640      88       53      484
                    MPY240S       2 x 36w T8    162     1250     88       53      484
                    MPY220S-AL    2 x 18w T8    162     640      88       53      484
                    MPY240S-AL    2 x 36w T8    162     1250     88       53      484
                    Note: subject to +/- 2 mm in tolerance
