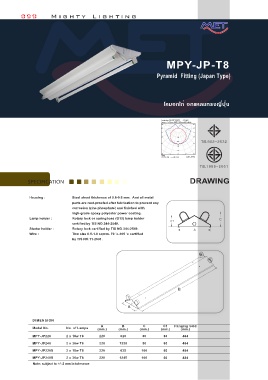

Page 104 - MIGHTY - CATALOGUE 2014-2015
P. 104

099          Mighty Lighting










                                                                           MPY-JP-T8


                                                                       Pyramid  Fitting (Japan Type)






                                                                          โคมอกไก่ อกแหลมทรงญี่ปุ่น



                                                                         Luminaire: PROJECT: MPY  -JP240S
                                                                         Lamps: 2 x Fluor. 36W 1200mm #83 white
                                                                         105°          105°
                                                                         90°           90°
                                                                         75°           75°
                                                                         60°    100    60°
                                                                                          
                                                                                150
                                                                         45°           45°
                                                                                200
                                                                                250
                                                                         30°  15°  0 0°°  15°  30°
                                                                         cd/klm
                                                                          C0 - C180  C90 - C270  LOR=94%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING



              Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                 parts are rust-proofed after fabrication to prevent any
                                 corrosion (zine phosphate) and finished with
                                 high-grade epoxy polyester power coating.
              Lamp holder :      Rotary lock or spring load (G13) lamp holder                    
                                 certified by TIS NO.344-2549.
              Starter holder :   Rotary lock certified by TIS NO.344-2549.             
              Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc certified
                                 by TIS NO.11-2531.











                                                                                B



                                                          A


               DIMENSION
                                              A        B         C        C1  Hanging hold
               Model No.      No. of Lamps  (mm.)     (mm.)    (mm.)    (mm.)    (mm.)
               MPY-JP220      2 x 18w T8     220       620      80        80      484
               MPY-JP240      2 x 36w T8     220      1230      80        80      484
               MPY-JP220S     2 x 18w T8     220       635      100       80      484
               MPY-JP240S     2 x 36w T8     220      1245      100       80      484
                Note: subject to +/- 2 mm in tolerance
