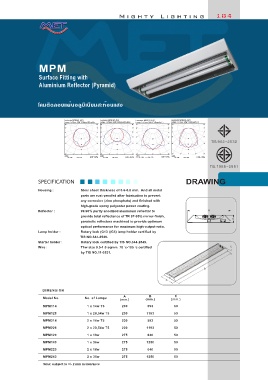

Mighty Lighting                            104    2











                  MPM

                  Surface Fitting with
                  Aluminium Reflector (Pyramid)




                  โคมติดลอยแผ่นอลูมิเนียมสะท้อนแสง



                              Luminaire: MPM240_AL01  Luminaire: MPM140_AL01  Luminaire: MPM228_AL01  Luminaire: MPM128_AL01
                              Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white  Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5
                              105°          105°  105°      105°  105°     105°  105°      105°
                              90°           90°  90°        90°  90°        90°  90°       90°
                              75°           75°  75°        75°  75°        75°  75°       75°
                              60°           60°  60°        60°  60°        60°  60°       60°
                                                                                               
                                     200             160             160            200
                              45°           45°  45°        45°  45°        45°  45°       45°
                                     300             240             240            300
                                     400             320                            400
                              30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°
                              cd/klm     LOR=92%  cd/klm  LOR=95%  cd/klm  LOR=91%  cd/klm  LOR=96%
                               C0 - C180  C90 - C270  C0 - C180  C90 - C270  C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                              
                  SPECIFICATION                                                     DRAWING

                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent
                                     any corrosion (zine phosphate) and finished with
                                     high-grade epoxy polyester power coating.
                  Reflector :        99.90% purity anodized aluminium reflector to            
                                     provide total reflectance of TR 87-95% mirror-finish,
                                                                                                        
                                     parabolic reflectors machined to provide optimum
                                     optical performance for maximum high-output-ratio.
                  Lamp holder :      Rotary lock (G13 )(G5) lamp holder certified by
                                                              TIS NO.344-2549.
                  Starter holder :   Rotary lock certified by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc certified                     
                                     by TIS NO.11-2531.



                                                                                            

                                                                           

                    DIMENSION
                    Model No.          No. of Lamps     A          B           C
                                                      (mm.)       (mm.)      (mm.)
                    MPM114              1 x 14w T5     200         593        50
                    MPM128              1 x 28,54w T5  200        1193        50
                    MPM214              2 x 14w T5     200         593        50
                    MPM228              2 x 28,54w T5  200        1193        50
                    MPM120              1 x 18w        275         640        50
                    MPM140              1 x 36w        275        1250        50
                    MPM220              2 x 18w        275         640        50
                    MPM240              2 x 36w        275        1250        50
                    Note: subject to +/- 2 mm in tolerance
