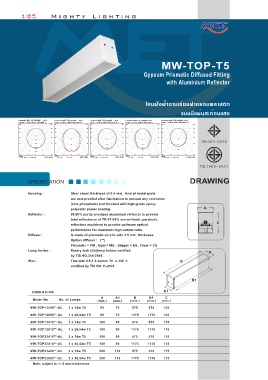

105          Mighty Lighting










                                                                         MW-TOP-T5


                                                                 Gypsum Prismatic Diffused Fitting
                                                                           with Aluminium Reflector




                                                                  โคมฝัังฝ้าฉาบเรียบฝาครอบพลาสติก
                                                                                 แบบมีแผ่นสะท้อนแสง

         Luminaire: MW_TOP22820MU  -AL01  Luminaire: MW_TOP12810PM  -AL01  Luminaire: MW_TOP12810MU  -AL01  Luminaire: MW_TOP12808PM_AL01  Luminaire: MW_TOP12808MU_AL01
         Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5
          105°          105°  105°     105°  105°      105°  105°      105°  105°      105°
          90°           90°  90°        90°  90°       90°  90°        90°  90°        90°
          75°           75°  75°        75°  75°       75°  75°        75°  75°        75°
                 80
          60°           60°  60°        60°  60°       60°  60°        60°  60°        60°
                                                                                          
                                 80             80              80              80
                 120
          45°    160    45°  45°        45°  45°       45°  45°        45°  45°        45°
                                120             120             120             120
                 200
                                                160             160             160
                 240
          30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°
         cd/klm          cd/klm          cd/klm          cd/klm     LOR=35%  cd/klm
           C0 - C180  C90 - C270  LOR=59%  C0 - C180  C90 - C270  LOR=40%  C0 - C180  C90 - C270  LOR=43%  C0 - C180  C90 - C270  C0 - C180  C90 - C270  LOR=37%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING
             Housing :          Steel sheet thickness of 0.6 mm.  And all metal parts
                                are rust-proofed after fabrication to prevent any corrosion
                                (zine phosphate) and finished with high-grade epoxy
                                polyester power coating.                                    A
             Reflector :        99.90% purity anodized aluminium reflector to provide
                                total reflectance of TR 87-95% mirror-finish, parabolic
                                reflectors machined to provide optimum optical                   C
                                performance for maximum high-output-ratio.
             Diffuser :         Is made of prismatic acrylic with 2.5 mm. thickness
                                Option diffuser :   (**)
                                Prismatic = PM , Opal = MU , Stipple = ES , Clear = CS
             Lamp holder :      Rotary lock (G5)lamp holder certified                         A
                                by TIS NO.344-2549.
             Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc              B
                                certified by TIS NO.11-2531.


                                                                                      B1

               DIMENSION                                                  A1
                                              A     A1      B      B1     C
                Model No.  No. of Lamps     (mm.)  (mm.)   (mm.)  (mm.)  (mm.)
              MW-TOP11408**-AL  1 x 14w T5    80    70      575    570    100
              MW-TOP12808**-AL  1 x 28,54w T5  80   70     1175    1170   100
              MW-TOP11410**-AL  1 x 14w T5   100    90      575    570    115
              MW-TOP12810**-AL  1 x 28,54w T5  100  90     1175    1170   115
              MW-TOP21410**-AL  2 x 14w T5   100    90      575    570    115
              MW-TOP22810**-AL  2 x 28,54w T5  100  90     1175    1170   115
              MW-TOP21420**-AL  2 x 14w T5   200    110     575    570    115
              MW-TOP22820**-AL  2 x 28,54w T5  200  110    1175    1170   115
                Note: subject to +/- 2 mm in tolerance
