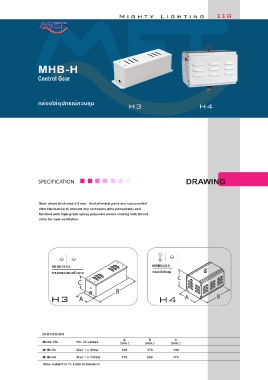

P. 115

Mighty Lighting                            110    2











                  MHB-H


                  Control Gear





                  กล่องใส่อุปกรณ์ควบคุม
                                                          H3                              H4


















                  SPECIFICATION                                                     DRAWING





                  Steel sheet thickness 0.8 mm.  And all metal parts are rust-proofed
                  after fabrication to prevent any corrosion (zine phosphate) and
                  finished with high-grade epoxy polyester power coating with finned
                  slots for heat ventilation











                        MHBH3XX                                      MHBH4XX
                        ทรงแนวนอนตัวยาว                              ทรงตัวใหญ่
                                                                                C
                                    C

                                                    B
                        H3            A                                H4            A           B









                    DIMENSION
                                                        A          B           C
                    Model No.      No. of Lamps       (mm.)       (mm.)      (mm.)
                    MHB-H3         Max 1 x 400w        108        370         108
                    MHB-H4         Max 1 x 1000w       172        260         170
                    Note: subject to +/- 2 mm in tolerance
