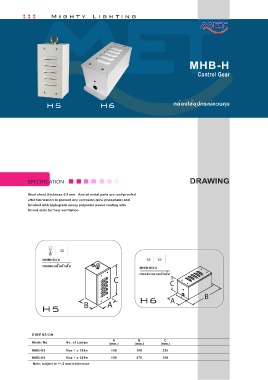

Page 116 - MIGHTY - CATALOGUE 2014-2015
P. 116

111          Mighty Lighting










                                                                                     MHB-H

                                                                                         Control Gear







                      H5                     H6                               กล่องใส่อุปกรณ์ควบคุม















                                                                                          


             SPECIFICATION                                                           DRAWING


             Steel sheet thickness 0.8 mm.  And all metal parts are rust-proofed
             after fabrication to prevent any corrosion (zine phosphate) and
             finished with high-grade epoxy polyester power coating with
             finned slots for heat ventilation











                    MHBH5XX
                    ทรงแนวตั้งตัวสั้น                          MHBH6XX
                                                               ทรงแนวนอนตัวสั้น
                                                    C                        C




                                                               H6              A            B
                    H5                B          A






               DIMENSION
                                                   A          B           C
               Model No.      No. of Lamps        (mm.)      (mm.)      (mm.)
               MHB-H5         Max 1 x 125w        108         108        220
               MHB-H6         Max 1 x 125w        108         270        108
                Note: subject to +/- 2 mm in tolerance
