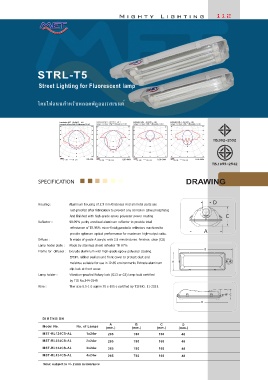

                  STRL-T5


                  Street Lighting for Fluorescent lamp



                  โคมไฟถนนสำหรับหลอดฟลูออเรสเซนต์




                            Luminaire: MST -RL424CS -AL1  Luminaire: MST -RL324CS -AL1  Luminaire: MST -RL224CS -AL1  Luminaire: MST -RL124CS -AL1
                            Lamps: 4 x Fluor. 24W 2' Silhouette T5 HO  Lamps: 3 x Fluor. 24W 2' Silhouette T5 HO  Lamps: 2 x Fluor. 24W 2' Silhouette T5 HO  Lamps: 1 x Fluor. 24W 2' Silhouette T5 HO
                            105°          105°  105°      105°  105°      105°  105°       105°
                            90°           90°  90°        90°  90°        90°  90°         90°
                            75°           75°  75°        75°  75°        75°  75°         75°
                                   100
                            60°           60°  60°        60°  60°        60°  60°         60°  TIS.902-2532
                                   150             160             200              200
                            45°    200    45°  45°        45°  45°        45°  45°  300    45°
                                                   240             300
                                   250
                                                   320             400              400
                                   300
                            30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                            cd/klm     LOR=82%  cd/klm      cd/klm           cd/klm     LOR=89%
                             C0 - C180  C90 - C270  C0 - C180  C90 - C270  LOR=84%  C0 - C180  C90 - C270  LOR=80%  C0 - C180  C90 - C270
                                                                                               TIS.1955-2542
                  SPECIFICATION                                                     DRAWING


                                                                                                D
                  Housing :                  Aluminum housing of 2.5 mm thickness And all metal parts are
                                                  rust-proofed after fabrication to prevent any corrosion (zine phosphate)
                                                  And finished with high-grade epoxy polyester power coating  C
                  Reflector :                 99.99% purity anodized aluminum reflector to provide total
                                                  reflectance of TR 95% miror-finish,parabolic reflectors machined to  A
                                                  provide optimum optical performance for maximum high-output ratio.
                  Diffuse :                    Is made of grade A acrylic with 2.8 mm.thicknes. finishes: clear (CS)
                  Lamp hoder plate :     Made by stainless sheet reflextor TR 87%
                                                                                            B
                  Frame for  diffuser :   Extrude aluminum with high-grade epoxy polyester coating.
                                                  EPDM. rubber seal around front cover to protect dust and
                                                  moistrue suitable for use in IP-65 environments Extrude aluminum  A
                                                  clip lock at front cover.
                  Lamp holder :            Vibration-proofed Rotary lock (G13 or G5) lamp hold certified
                                                  by TIS No.344-2549
                  Wire :                       Thw size 0.5-1.0 sqmm.70 c-105 c certified by TIS NO. 11-2531.
                                                                                                       C
                                                                                          B



                    DIMENSION
                                                  A          B          C         D
                    Model No.      No. of Lamps  (mm.)      (mm.)      (mm.)    (mm.)
                    MST-RL124CS-AL     1x24w     265        780         160       48
                    MST-RL224CS-AL     2x24w     265        780         160       48
                    MST-RL324CS-AL     3x24w     265        780         160       48
                    MST-RL424CS-AL     4x24w     265        780         160       48
                    Note: subject to +/- 2 mm in tolerance
