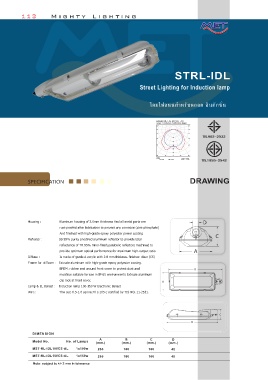

Page 118 - MIGHTY - CATALOGUE 2014-2015
P. 118

113          Mighty Lighting













                                                                               STRL-IDL


                                                               Street Lighting for Induction lamp



                                                                    โคมไฟถนนสำหรับหลอด อินดักชั่น



                                                                      Luminaire: MST -RL -IDL150CS -AL1
                                                                      Lamps: 1 x Induction 150W Icetron (large)
                                                                       105°          105°
                                                                       90°           90°
                                                                       75°           75°
                                                                                           TIS.902-2532
                                                                              80
                                                                       60°           60°
                                                                              120
                                                                       45°    160    45°
                                                                              200
                                                                              240
                                                                       30°  15°  0°° 0  15°  30°
                                                                      cd/klm
                                                                        C0 - C180  C90 - C270  LOR=74%  TIS.1955-2542
                                                                                          
             SPECIFICATION                                                           DRAWING










              Housing :                  Aluminum housing of 3.0mm thickness And all metal parts are  D
                                              rust-proofed after fabrication to prevent any corrosion (zine phosphate)
                                              And finished with high-grade epoxy polyester power coating  C
              Reflector :                 99.99% purity anodized aluminum reflector to provide total
                                              reflectance of TR 95% miror-finish,parabolic reflectors machined to
                                              provide optimum optical performance for maximum high-output ratio.  A
              Diffuse :                    Is made of grade A acrylic with 2.8 mm.thicknes. finishes: clear (CS)
              Frame for  diffuser :   Extrude aluminum with high-grade epoxy polyester coating.
                                              EPDM. rubber seal around front cover to protect dust and  B
                                              moistrue suitable for use in IP-65 environments Extrude aluminum
                                              clip lock at front cover.  A
              Lamp & EL.Ballast :    Induction lamp 100-150 W Electronic Ballast
              Wire :                       Thw size 0.5-1.0 sqmm.70 c-105 c certified by TIS NO. 11-2531.





                                                                                                   C
                                                                                      B

               DIMENSION
                                             A           B          C        D
               Model No.      No. of Lamps  (mm.)      (mm.)      (mm.)     (mm.)
               MST-RL-IDL100CS-AL  1x100w   265         780        160       48
               MST-RL-IDL150CS-AL  1x150w   265         780        160       48
                Note: subject to +/- 2 mm in tolerance
