P. 114

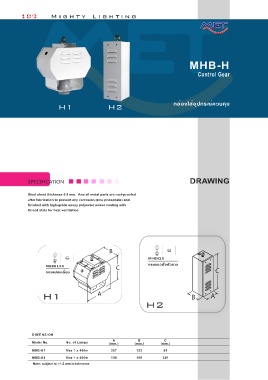

109          Mighty Lighting










                                                                                     MHB-H

                                                                                         Control Gear







                           H1                    H2                           กล่องใส่อุปกรณ์ควบคุม















                                                                                          


             SPECIFICATION                                                           DRAWING


             Steel sheet thickness 0.8 mm.  And all metal parts are rust-proofed
             after fabrication to prevent any corrosion (zine phosphate) and
             finished with high-grade epoxy polyester power coating with
             finned slots for heat ventilation









                                                  B
                                                                   MHBH2X
                     MHBH1XX                         C             ทรงแนวตั้งตัวยาว
                     ทรงแปดเหลี่ยม                                                               C




                    H1                      A                                         B        A
                                                                  H2







               DIMENSION
                                                   A          B           C
               Model No.      No. of Lamps        (mm.)      (mm.)      (mm.)
               MHB-H1         Max 1 x 400w        267         123         85
               MHB-H2         Max 1 x 400w        108         108        320
                Note: subject to +/- 2 mm in tolerance
