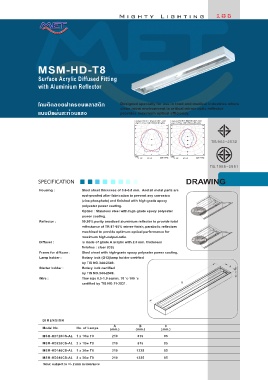

P. 111

Mighty Lighting                            106    2












                  MSM-HD-T8

                  Surface Acrylic Diffused Fitting
                  with Aluminium Reflector



                  โคมติดลอยฝาครอบพลาสติก               Designed specially for use in food and medical industries where
                  แบบมีแผ่นสะท้อนแสง                   clean room environment is critical mirror optic reflector
                                                       provides maximum optical efficiency.
                                                             Luminaire: PROJECT: MSM-HD240CS_AL01  Luminaire: PROJECT: MSM -HD140CS_AL01
                                                             Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white
                                                             105°          105°  105°      105°
                                                             90°           90°  90°        90°
                                                             75°           75°  75°        75°
                                                                                    200
                                                             60°           60°  60°        60°
                                                                    160
                                                                                    300        
                                                             45°           45°  45°  400   45°
                                                                    240
                                                                                    600
                                                             30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                                                             cd/klm          cd/klm
                                                              C0 - C180  C90 - C270  LOR=85%  C0 - C180  C90 - C270  LOR=91%
                                                                                              
                  SPECIFICATION                                                     DRAWING

                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal parts are
                                     rust-proofed after fabrication to prevent any corrosion
                                     (zine phosphate) and finished with high-grade epoxy
                                     polyester power coating.
                                     Option : Stainless steel with high-grade epoxy polyester   
                                     power coating.
                  Reflector :        99.90% purity anodized aluminium reflector to provide total
                                     reflectance of TR 87-95% mirror-finish, parabolic reflectors
                                     machined to provide optimum optical performance for
                                     maximum high-output-ratio.
                  Diffuser :         Is made of grade A acrylic with 2.0 mm. thickness   
                                     finishes : clear (CS)
                  Frame for diffuser :    Steel sheet with high-grade epoxy polyester power coating.
                  Lamp holder :      Rotary lock (G13)lamp holder certified
                                     by TIS NO.344-2549.
                  Starter holder :   Rotary lock certified                                             
                                     by TIS NO.344-2549.                                                 
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.                 








                    DIMENSION
                                                    A          B          C
                    Model No.      No. of Lamps   (mm.)      (mm.)       (mm.)
                    MSM-HD120CS-AL  1 x 18w T8     210        615         85
                    MSM-HD220CS-AL  2 x 18w T8     210        615         85
                    MSM-HD140CS-AL  1 x 36w T8     210        1225        85
                    MSM-HD240CS-AL  2 x 36w T8     210        1225        85
                    Note: subject to +/- 2 mm in tolerance
