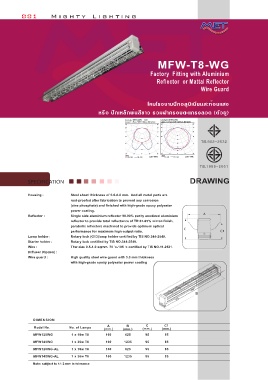

P. 86

081          Mighty Lighting










                                                                       MFW-T8-WG

                                                                    Factory  Fitting with Aluminium
                                                                       Reflector  or Mattal Reflector

                                                                                          Wire Guard


                                                                   โคมโรงงานปืกอลูมิเนียมสะท้อนแสง
                                             หรือ ปืกเหล็กพ่นสีขาว รวมฝาครอบตะแกรงลวด (ตัวยู)

                                                        Luminaire: MFW140WG -AL01  Luminaire: MFW140WG
                                                        Lamps: 1 x Fluor. 36W 1200mm #83 white  Lamps: 1 x Fluor. 36W 1200mm #83 white
                                                         105°          105°  105°      105°
                                                         90°           90°  90°        90°
                                                         75°           75°  75°        75°
                                                                                80
                                                         60°           60°  60°        60°
                                                                                          
                                                                160             120
                                                         45°           45°  45°  160   45°
                                                                240
                                                                                200
                                                                320
                                                                                240
                                                         30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                                                         cd/klm    LOR=88%  cd/klm  LOR=79%
                                                          C0 - C180  C90 - C270  C0 - C180  C90 - C270
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING
             Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal parts are
                                rust-proofed after fabrication to prevent any corrosion
                                (zine phosphate) and finished with high-grade epoxy polyester
                                power coating.
             Reflector :        Single side aluminium reflector 99.90% purity anodized aluminium  A
                                reflector to provide total reflectance of TR 87-95% mirror-finish,
                                parabolic reflectors machined to provide optimum optical
                                                                                   C
                                performance for maximum high-output-ratio.                         C1
             Lamp holder :      Rotary lock (G13)lamp holder certified by TIS NO.344-2549.
             Starter holder :   Rotary lock certified by TIS NO.344-2549.
             Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc certified by TIS NO.11-2531.
             Diffuser (Option) :
             Wire guard :       High quality steel wire guard with 3.0 mm thickness
                                with high-grade epoxy polyester power coating






                                                                                        B






                DIMENSION
                                                 A       B        C       C1
                Model No.       No. of Lamps   (mm.)    (mm.)   (mm.)    (mm.)
                MFW120WG         1 x 18w T8     160      625      95      85
                MFW140WG         1 x 36w T8     160     1235      95      85
                MFW120WG-AL      1 x 18w T8     160      625      95      85
                MFW140WG-AL      1 x 36w T8     160     1235      95      85
                Note: subject to +/- 2 mm in tolerance
