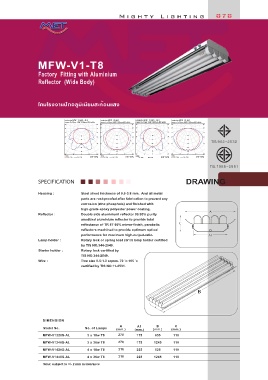

Mighty Lighting                            078    2










                  MFW-V1-T8

                  Factory  Fitting with Aluminium

                  Reflector  (Wide Body)




                  โคมโรงงานปืกอลูมิเนียมสะท้อนแสง



                              Luminaire: MFW -V1440S -AL01  Luminaire: MFW -V1440S  Luminaire: MFW -V1340S -AL01  Luminaire: MFW -V1340S
                              Lamps: 5 x Fluor. 36W 1200mm #83 white  Lamps: 5 x Fluor. 36W 1200mm #83 white  Lamps: 3 x Fluor. 36W 1200mm #83 white  Lamps: 3 x Fluor. 36W 1200mm #83 white
                              105°          105°  105°      105°  105°     105°  105°      105°
                              90°           90°  90°        90°  90°        90°  90°       90°
                              75°           75°  75°        75°  75°        75°  75°       75°
                                     100             80             100             80
                              60°           60°  60°        60°  60°        60°  60°       60°
                                                                                               
                                     150             120            150             120
                              45°    200    45°  45°  160   45°  45°  200   45°  45°  160  45°
                                     250             200            250             200
                                     300             240            300             240
                              30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°
                              cd/klm          cd/klm         cd/klm          cd/klm
                               C0 - C180  C90 - C270  LOR=89%  C0 - C180  C90 - C270  LOR=83%  C0 - C180  C90 - C270  LOR=92%  C0 - C180  C90 - C270  LOR=86%
                                                                                              
                  SPECIFICATION                                                     DRAWING


                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal
                                     parts are rust-proofed after fabrication to prevent any
                                     corrosion (zine phosphate) and finished with
                                     high-grade epoxy polyester power coating.                A
                  Reflector :        Double side aluminiuml reflector 99.90% purity
                                     anodized aluminium reflector to provide total
                                     reflectance of TR 87-95% mirror-finish, parabolic   C
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.               A1
                  Lamp holder :      Rotary lock or spring load (G13) lamp holder certified
                                     by TIS NO.344-2549.
                  Starter holder :   Rotary lock certified by
                                     TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.





                                                                                         B






                    DIMENSION
                                                      A       A1       B       C
                    Model No.          No. of Lamps  (mm.)   (mm.)   (mm.)   (mm.)
                    MFW-V1320S-AL       3 x 18w T8    270     175     635     110
                    MFW-V1340S-AL       3 x 36w T8    270     175    1245     110
                    MFW-V1420S-AL       4 x 18w T8    310     225     635     110
                    MFW-V1440S-AL       4 x 36w T8    310     225    1245     110
                    Note: subject to +/- 2 mm in tolerance
