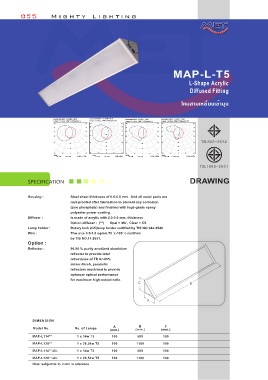

Page 60 - MIGHTY - CATALOGUE 2014-2015
P. 60

055          Mighty Lighting













                                                                              MAP-L-T5

                                                                                     L-Shape Acrylic
                                                                                     Diffused Fitting


                                                                                  โคมสามเหลี่ยมเข้ามุม



                         Luminaire: MAP -L128MU -AL01  Luminaire: MAP -L128PM -AL01  Luminaire: MAP -L128ES -AL01  Luminaire: MAP -L128CS -AL01
                         Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5  Lamps: 1 x Fluor. 28W 4' Silhouette T5
                         105°          105°  105°      105°  105°      105°  105°      105°
                         90°           90°  90°        90°  90°        90°  90°        90°
                         75°           75°  75°        75°  75°        75°  75°        75°
                                                100                             200
                         60°           60°  60°        60°  60°        60°  60°        60°
                                                                                          
                         45°    240    45°  45°  200   45°  45°  300   45°  45°  400   45°
                                                250                             500
                                320                             400
                                                300                             600
                         30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°  30°  15°  0°° 0  15°  30°
                         cd/klm           cd/klm         cd/klm          cd/klm
                          C0 - C180  C90 - C270  LOR=71%  C0 - C180  C90 - C270  LOR=63%  C0 - C180  C90 - C270  LOR=69%  C0 - C180  C90 - C270  LOR=87%
                                                                                          
                                                                                          
             SPECIFICATION                                                           DRAWING


             Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal parts are
                                rust-proofed after fabrication to prevent any corrosion
                                (zine phosphate) and finished with high-grade epoxy
                                polyester power coating.
             Diffuser :         Is made of acrylic with 2.0-3.0 mm. thickness
                                Option diffuser :  (**)      Opal = MU , Clear = CS
             Lamp holder :      Rotary lock (G5)lamp holder certified by TIS NO.344-2549.
             Wire :             Thw size 0.5-1.0 sqmm.70 ํc-105 ํc certified
                                by TIS NO.11-2531.
             Option :
             Reflector :        99.90 % purity anodized aluminium
                                reflector to provide total
                                reflectance of TR 87-95%
                                mirror-finish, parabolic
                                reflectors machined to provide
                                optimum optical performance
                                for maximum high-output-ratio.
                                                                                    


                                                                  




               DIMENSION
                Model No.         No. of Lamps     A           B          C
                                                  (mm.)      (mm.)       (mm.)
               MAP-L114**          1 x 14w T5      100        580        100
               MAP-L128**          1 x 28,54w T5   100        1180       100
               MAP-L114**-AL       1 x 14w T5      100        580        100
               MAP-L128**-AL       1 x 28,54w T5   100        1180       100
               Note: subject to +/- 2 mm in tolerance
