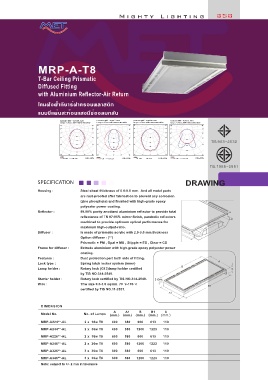

Mighty Lighting                            050    2












                  MRP-A-T8

                  T-Bar Ceiling Prismatic
                  Diffused Fitting
                  with Aluminium Reflector-Air Return

                  โคมฝังฝ้าทีบาร์ฝาครอบพลาสติก
                  แบบมีแผ่นสะท้อนแสงมีช่องลมกลับ

                            Luminaire: MRP -A346PM_AL01  Luminaire: MRP -A346CS_AL01  Luminaire: MRP -A246PM_AL01  Luminaire: MRP -A246CS_AL01
                            Lamps: 3 x Fluor. 36W 1200mm #83 white  Lamps: 3 x Fluor. 36W 1200mm #83 white  Lamps: 2 x Fluor. 36W 1200mm #83 white  Lamps: 2 x Fluor. 36W 1200mm #83 white
                            105°          105°  105°      105°  105°      105°  105°       105°
                            90°           90°  90°        90°  90°         90°  90°        90°
                            75°           75°  75°        75°  75°         75°  75°        75°
                                   100
                            60°           60°  60°  200   60°  60°  100    60°  60°        60°
                                                                                    200
                                   150                                                         
                                                   300             150
                            45°    200    45°  45°        45°  45°         45°  45°  300   45°
                                                   400             200
                                                                                    400
                                   300             500
                            30°  15°  0°° 0  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°
                            cd/klm     LOR=58%  cd/klm      cd/klm           cd/klm
                             C0 - C180  C90 - C270  C0 - C180  C90 - C270  LOR=82%  C0 - C180  C90 - C270  LOR=61%  C0 - C180  C90 - C270  LOR=83%
                                                                                              
                  SPECIFICATION                                                    DRAWING
                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal parts
                                     are rust-proofed after fabrication to prevent any corrosion
                                     (zine phosphate) and finished with high-grade epoxy
                                     polyester power coating.
                  Reflector :        99.90% purity anodized aluminium reflector to provide total
                                     reflectance of TR 87-95% mirror-finish, parabolic reflectors
                                     machined to provide optimum optical performance for
                                     maximum high-output-ratio.
                  Diffuser :         Is made of prismatic acrylic with 2.0-3.0 mm.thickness
                                     Option diffuser : (**)
                                     Prismatic = PM , Opal = MU , Stipple = ES , Clear = CS
                  Frame for diffuser :    Extrude aluminium with high-grade epoxy polyester power
                                     coating.
                  Features :         Dust protection part both side of fitting.
                                                                                                   A
                  Lock type :        Spring latch locker system (inner)
                                                                                  B
                  Lamp holder :      Rotary lock (G13)lamp holder certified                             C
                                     by TIS NO.344-2549.
                  Starter holder :   Rotary lock certified by TIS NO.344-2549.  3 Cm.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                                                                              B1
                                     certified by TIS NO.11-2531.
                                                                            A1

                   DIMENSION
                                                   A     A1    B    B1    C
                   Model No.          No. of Lamps  (mm.)  (mm.)  (mm.)  (mm.)  (mm.)
                   MRP-A224**-AL       2 x  18w T8  400  380  600   613  110
                   MRP-A244**-AL       2 x  36w T8  400  380  1200  1223  110
                   MRP-A226**-AL       2 x  18w T8  600  580  600   613  110
                   MRP-A246**-AL       2 x  36w T8  600  580  1200  1223  110
                   MRP-A326**-AL       3 x  36w T8  600  580  600   613  110
                   MRP-A346**-AL       3 x  36w T8  600  580  1200  1223  110
                   Note: subject to +/- 2 mm in tolerance
