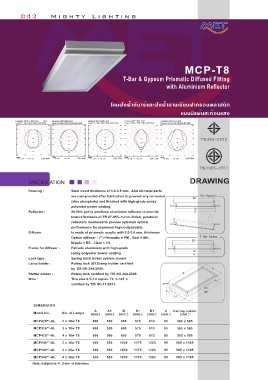

Page 48 - MIGHTY - CATALOGUE 2014-2015

043 Mighty Lighting

MCP-T8

T-Bar & Gypsum Prismatic Diffused Fitting
with Aluminium Reflector

โคมฝังฝ้าทีบาร์และฝังฝ้าฉาบเรียบฝาครอบพลาสติก
แบบมีแผ่นสะท้อนแสง

Luminaire: PROJECT: MCP246CS -AL01 Luminaire: MCP346PM_AL01 Luminaire: MCP346MU_AL01 Luminaire: MCP346ES_AL01 Luminaire: MCP346CS_AL01
Lamps: 2 x Fluor. 36W 1200mm #83 white Lamps: 3 x Fluor. 36W 1200mm #83 white Lamps: 3 x Fluor. 36W 1200mm #83 white Lamps: 3 x Fluor. 36W 1200mm #83 white Lamps: 3 x Fluor. 36W 1200mm #83 white
105° 105° 105° 105° 105° 105° 105° 105° 105° 105°
90° 90° 90° 90° 90° 90° 90° 90° 90° 90°
75° 75° 75° 75° 75° 75° 75° 75° 75° 75°
100 100
60° 200 60° 60° 60° 60° 60° 60° 200 60° 60° 200 60° 
150 150
300 300 300 
45° 45° 45° 200 45° 45° 200 45° 45° 45° 45° 45°
400 400
250
500 500
300 300
30° 15° 0°° 0 15° 30° 30° 15° 0°° 0 15° 30° 30° 15° 0°° 0 15° 30° 30° 15° 0 0°° 15° 30° 30° 15° 0°° 0 15° 30°
cd/klm LOR=90% cd/klm LOR=65% cd/klm LOR=73% cd/klm cd/klm LOR=88%
C0 - C180 C90 - C270 C0 - C180 C90 - C270 C0 - C180 C90 - C270 C0 - C180 C90 - C270 LOR=73% C0 - C180 C90 - C270

SPECIFICATION DRAWING
Housing : Steel sheet thickness of 0.6-0.8 mm. And all metal parts
are rust-proofed after fabrication to prevent any corrosion 
B2
(zine phosphate) and finished with high-grade epoxy
polyester power coating.
B1
Reflector : 99.90% purity anodized aluminium reflector to provide B
total reflectance of TR 87-95% mirror-finish, parabolic
reflectors machined to provide optimum optical
performance for maximum high-output-ratio.
Diffuser : Is made of prismatic acrylic with 2.0-3.0 mm. thickness
Option diffuser : (**) Prismatic = PM , Opal = MU , 
Stipple = ES , Clear = CS B2
Frame for diffuser : Extrude aluminium with high-grade
B1
epoxy polyester power coating. B
Lock type : Spring latch locker system (inner)
Lamp holder : Rotary lock (G13)lamp holder certified
by TIS NO.344-2549. A
Starter holder : Rotary lock certified by TIS NO.344-2549. B
Wire : Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
certified by TIS NO.11-2531. 
B1
C B2
A1
DIMENSION
A A1 B B1 B1 C Ceiling cutout
Model No. No. of Lamps (mm.) (mm.) (mm.) (mm.) (mm.) (mm.) (mm.)
MCP226**-AL 2 x 18w T8 600 580 600 575 613 95 585 x 585
MCP326**-AL 3 x 18w T8 600 580 600 575 613 95 585 x 585
MCP426**-AL 4 x 18w T8 600 580 600 575 613 95 585 x 585
MCP246**-AL 2 x 36w T8 600 580 1200 1175 1223 95 585 x 1185
MCP346**-AL 3 x 36w T8 600 580 1200 1175 1223 95 585 x 1185
MCP446**-AL 4 x 36w T8 600 580 1200 1175 1223 95 585 x 1185
Note: subject to +/- 2 mm in tolerance
