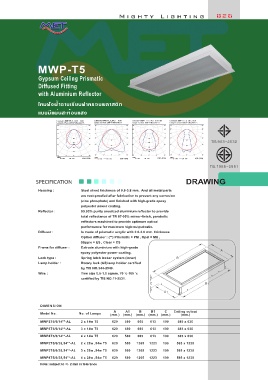

P. 31

Mighty Lighting                            026    2











                  MWP-T5

                  Gypsum Ceiling Prismatic

                  Diffused Fitting
                  with Aluminium Reflector

                  โคมฝังฝ้าฉาบเรียบฝาครอบพลาสติก
                  แบบมีแผ่นสะท้อนแสง

                          Luminaire: MWP4T5_6_28CS  -AL01  Luminaire: MWP3T5_6_28CS  -AL01  Luminaire: MWP2_T5_6_28CS_AL01_MB  Luminaire: MWP2_T5_6_28CS_AL01
                          Lamps: 4 x Fluor. 28W 4' Silhouette T5  Lamps: 3 x Fluor. 28W 4' Silhouette T5  Lamps: 2 x Fluor. 28W 4' Silhouette T5  Lamps: 2 x Fluor. 28W 4' Silhouette T5
                          105°          105°  105°       105°  105°       105°  105°       105°
                          90°            90°  90°        90°  90°         90°  90°         90°
                          75°            75°  75°        75°  75°         75°  75°         75°
                          60°    200     60°  60°        60°  60°  200    60°  60°         60°
                                                  160                               320        
                                 300                               300
                          45°            45°  45°        45°  45°         45°  45°         45°
                                                  240                               480
                                 400                               400
                                                  320
                                 500                               500
                           30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0 0°°  15°  30°  30°  15°  0°° 0  15°  30°
                          cd/klm           cd/klm           cd/klm           cd/klm
                            C0 - C180  C90 - C270  LOR=91%  C0 - C180  C90 - C270  LOR=85%  C0 - C180  C90 - C270  LOR=92%  C0 - C180  C90 - C270  LOR=92%
                                                                                              
                 SPECIFICATION                                                      DRAWING
                  Housing :          Steel sheet thickness of 0.6-0.8 mm.  And all metal parts
                                     are rust-proofed after fabrication to prevent any corrosion
                                     (zine phosphate) and finished with high-grade epoxy
                                     polyester power coating.
                  Reflector :        99.90% purity anodized aluminium reflector to provide
                                     total reflectance of TR 87-95% mirror-finish, parabolic
                                     reflectors machined to provide optimum optical
                                     performance for maximum high-output-ratio.
                  Diffuser :         Is made of prismatic acrylic with 2.0-3.0 mm. thickness
                                     Option diffuser : (**) Prismatic = PM , Opal = MU ,
                                                              Stipple = ES , Clear = CS
                  Frame for diffuser :    Extrude aluminium with high-grade                         
                                                              epoxy polyester power coating.
                  Lock type :        Spring latch locker system (inner)        
                  Lamp holder :      Rotary lock (G5)lamp holder certified
                                     by TIS NO.344-2549.
                  Wire :             Thw size 0.5-1.0 sqmm. 70 ํc-105 ํc
                                     certified by TIS NO.11-2531.
                                                                                           
                                                                          


                   DIMENSION
                                                    A    A1    B    B1    C   Ceiling cutout
                   Model No.        No. of Lamps  (mm.)  (mm.)  (mm.)  (mm.)  (mm.)  (mm.)
                   MWP2T5/6/14**-AL  2 x 14w T5    620  580   665   613  100    585 x 630
                   MWP3T5/6/14**-AL  3 x 14w T5    620  580   665   613  100    585 x 630
                   MWP4T5/6/14**-AL  4 x 14w T5    620  580   665   613  100    585 x 630
                   MWP2T5/6/28,54**-AL  2 x 28w ,54w T5  620  580  1265  1223  100  585 x 1230
                   MWP3T5/6/28,54**-AL  3 x 28w ,54w T5  620  580  1265  1223  100  585 x 1230
                   MWP4T5/6/28,54**-AL  4 x 28w ,54w T5  620  580  1265  1223  100  585 x 1230
                   Note: subject to +/- 2 mm in tolerance
