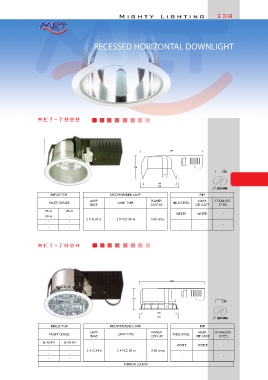

Page 135 - MIGHTY - CATALOGUE 2014-2015
P. 135

Mighty Lighting                             130   2






                                           RECESSED HORIZONTAL DOWNLIGHT


















                  MET-7808







                                                                            350



                                                            130


                                                                       185
                                                                       215
                                                                                                 200 MM
                        REFLECTOR                 RECOMMENDED LAMP                        RIM
                                            LAMP                     POWER                 ALUM.      STAINLESS
                       FACET DESIGE                  LAMP TYPE                MILD STEEL
                                         BASE                       220V AC             DIE CAST  STEEL
                     FS-A     PS-A
                                                                               WHITE     WHITE      -
                     PP-A       -
                                       2 X G 24 d    2 X PLC 26 w     0.62 amp.
                      -         -
                                                                                 -         -        -
                      -         -

                  MET-7804









                                                                             350


                                                            120


                                                                       185
                                                                       212
                                                                                                 200 MM
                        REFLECTOR                 RECOMMENDED LAMP                        RIM
                                            LAMP                     POWER                 ALUM.      STAINLESS
                       FACET DESIGE                  LAMP TYPE                MILD STEEL
                                         BASE                       220V AC             DIE CAST  STEEL
                    Q-45-P4  Q-45-R4
                                                                                WHITE    WHITE      -
                      -         -
                                        2 X G 24 d    2 X PLC 26 w     0.62 amp.
                      -         -
                                                                                 -         -        -
                      -         -
                                                        MIRROR LOUVER
